1994 HEIDELBERG-HARRIS V30 HEATSET WEB PRESS

Complete press line encompassing all equipment including After-burner,
Oxidizer and chilling equipment. Everything you need.

An excellent opportunity to purchase a well maintained press
in above average condition and with low hours. 3 of the 4 units
have had new cylinders fitted recently.

Substantial spare parts are also available.

Cut-off: 22 3/4" (578 mm)
Web width: 36" (914 mm)
Speed: 25,000 cph

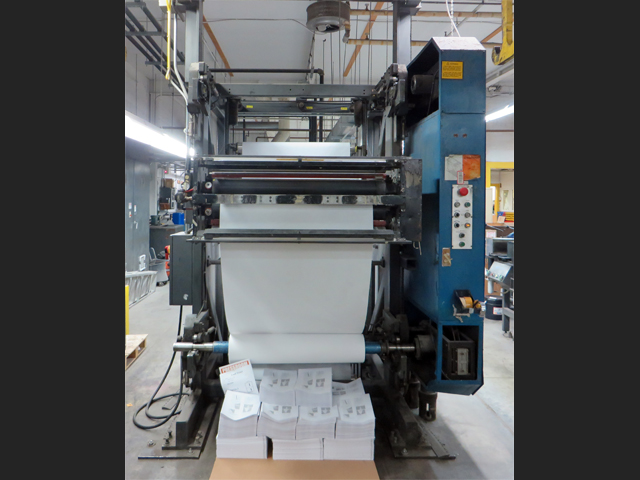

BUTLER model L38BD splicer for one web (includes 4 x air shafts)
HARRIS in-feed with QUADTECH web guide

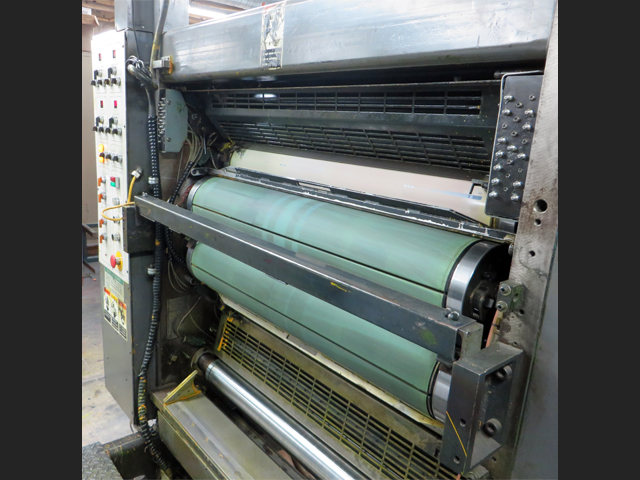

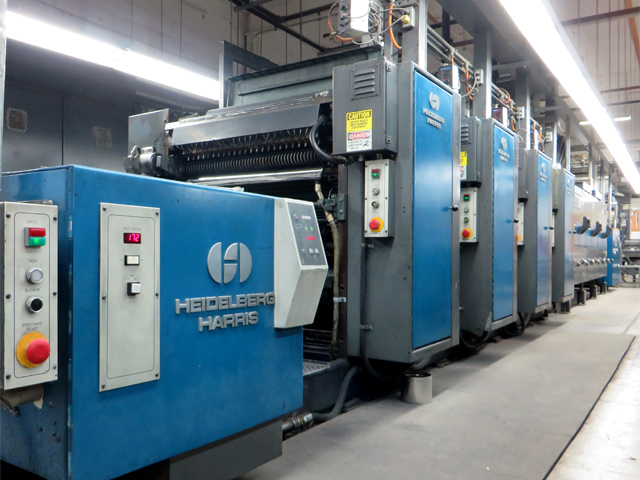

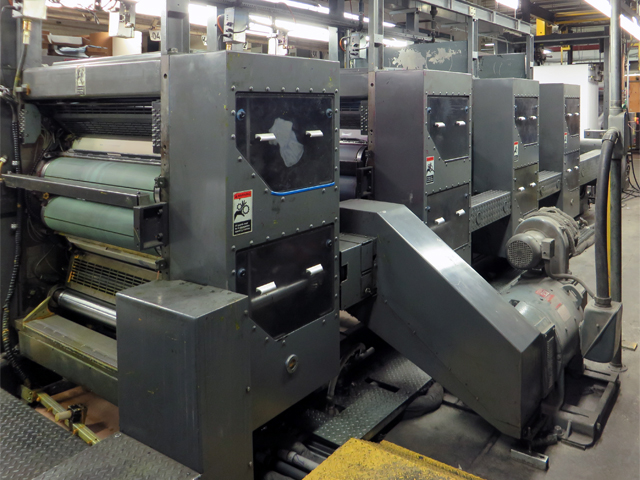

4 x HARRIS V30 printing units with Harris brush dampening
and Baldwin single tank recirculator

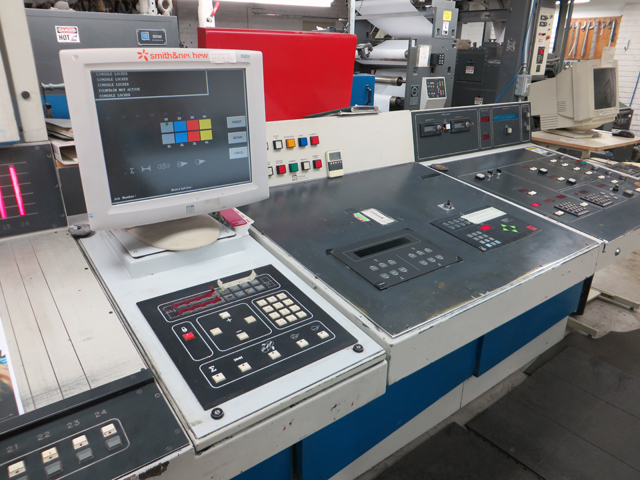

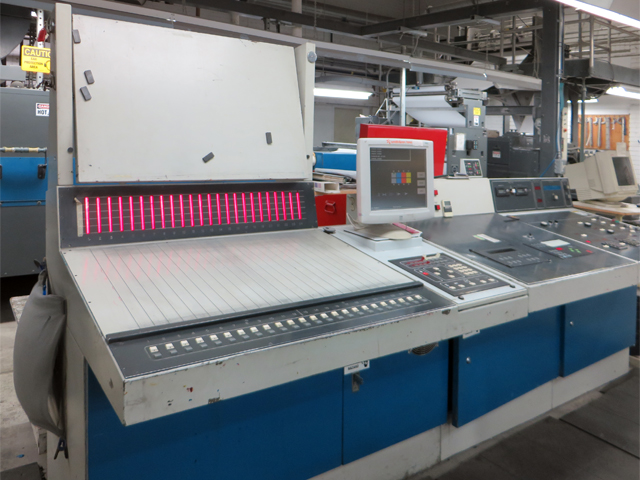

HARRIS TELECOLOR off-press ink control and motorized register
RGS closed loop registration

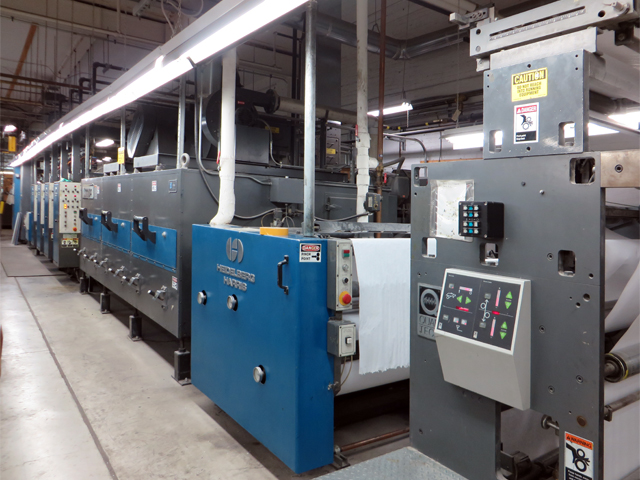

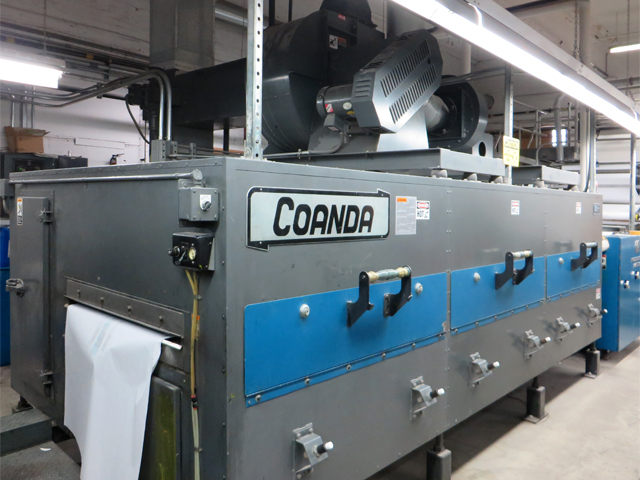

MEGTEC hot air dryer model COANDA (14' length)
MEGTEC QUANTUM 4000 catalytic Oxidizer (1,748,000 BTU/hr)
HARRIS 3-roll chill stand incl Carrier 30 HK 050 530 chill system complete
QUADTECH web aligner and silicone applicator unit
Web break detectors on all units

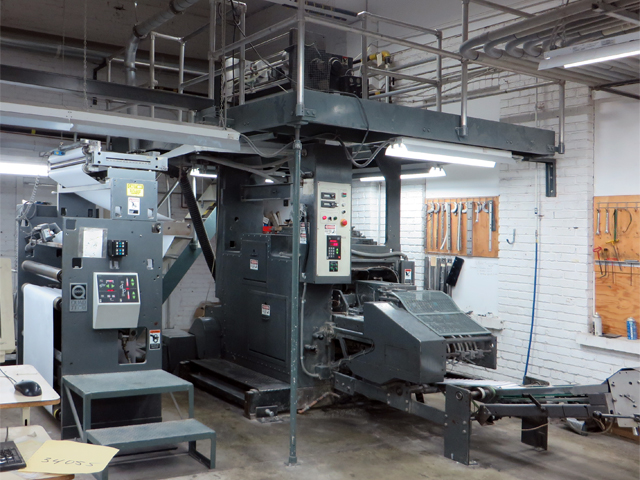

HARRIS model JF25C combination folder, including double parallel and quarter fold

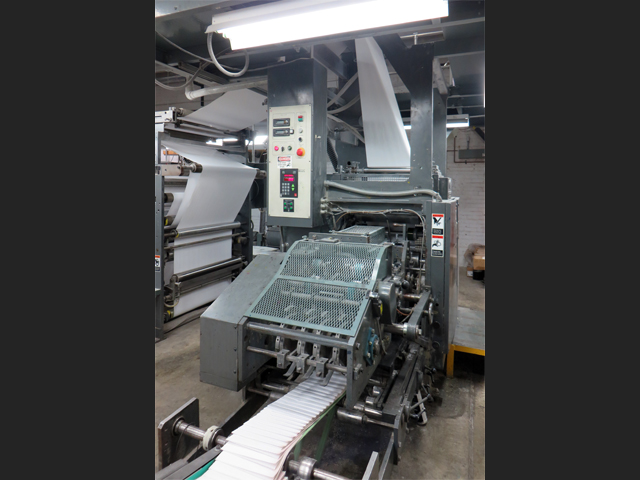

HEIDELBERG HARRIS RIMA counter stacker model: 2510, includes stream conveyor and squeeze roller
BURGESS pneumatic plate bender
Manual plate punch


For more photos and specifications, please contact: info@howardgraphic.com
